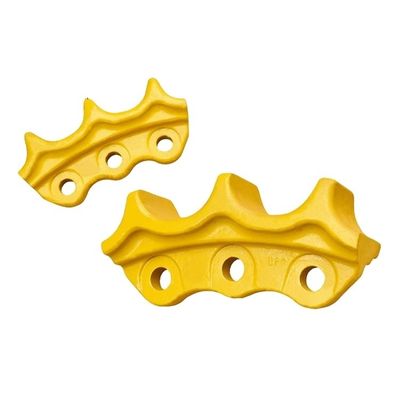

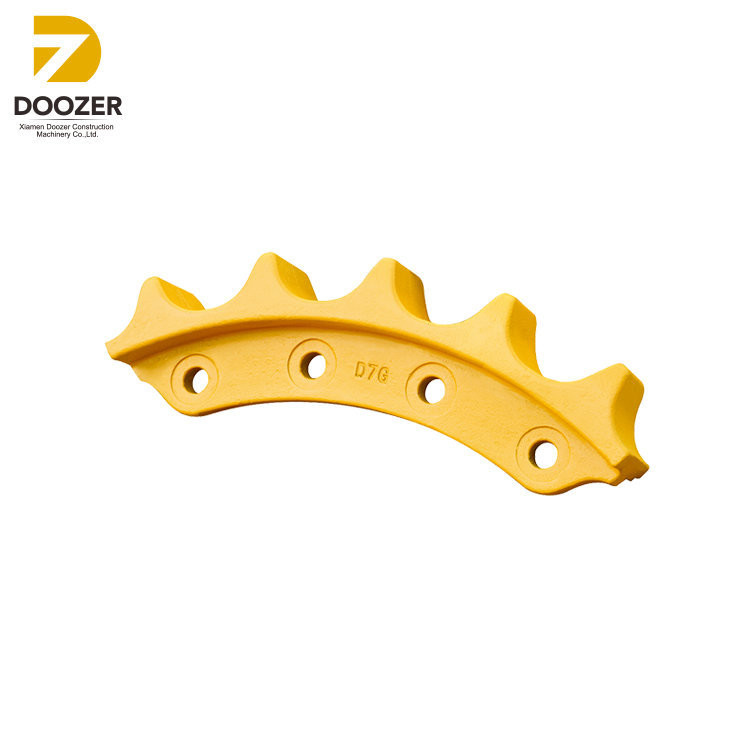

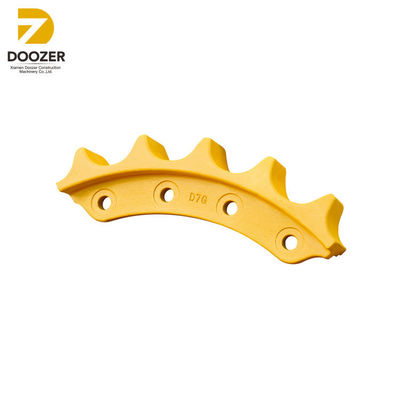

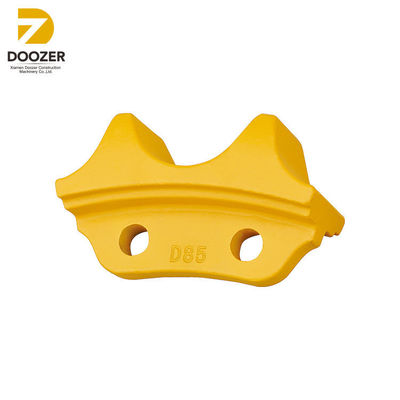

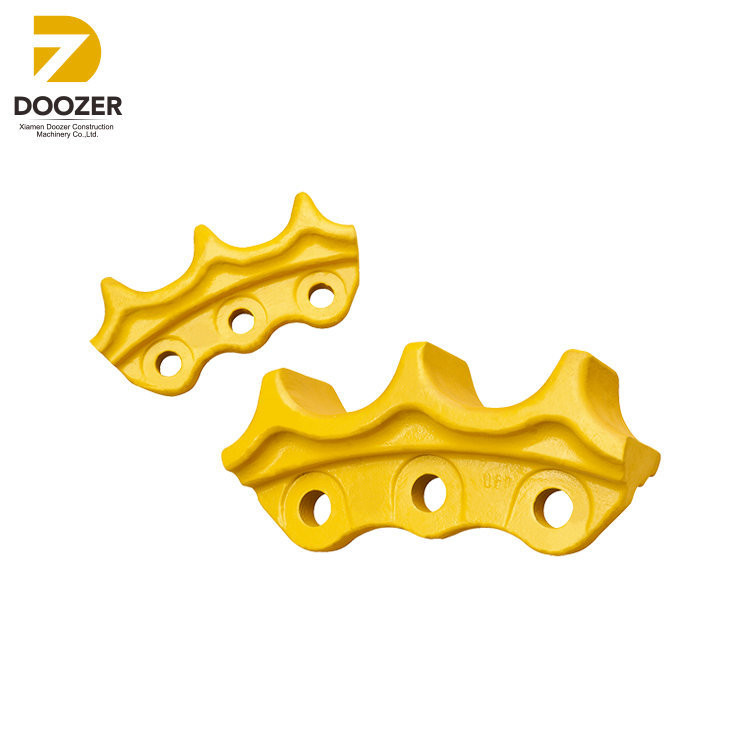

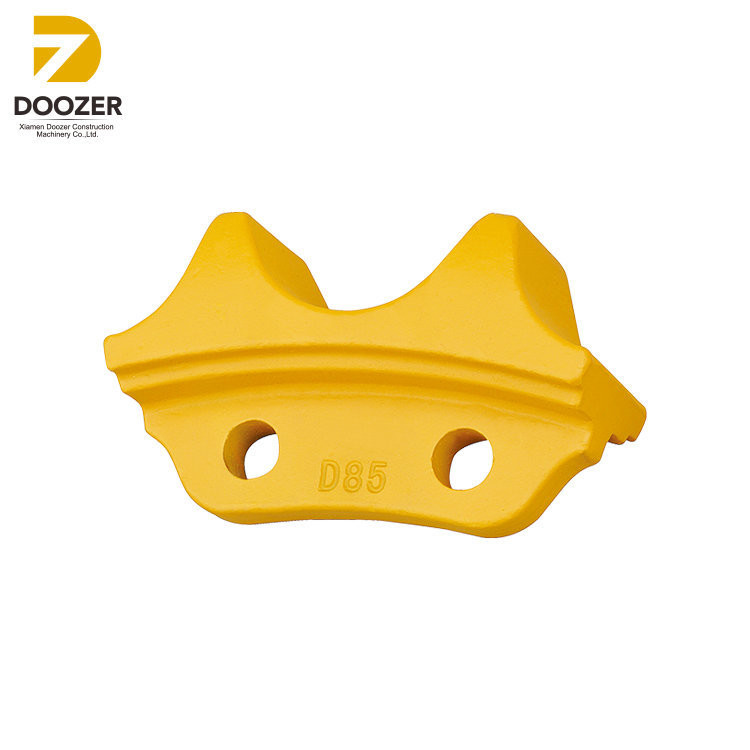

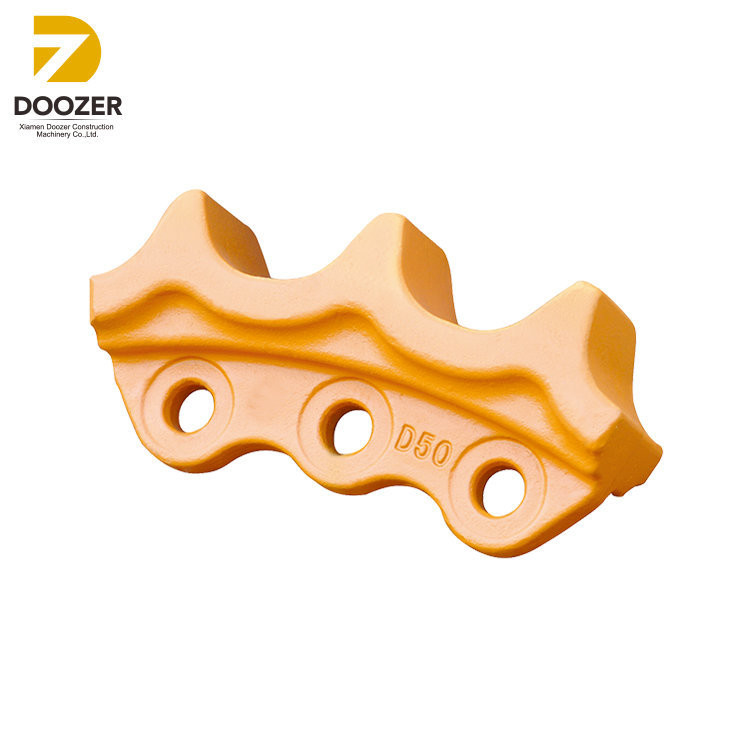

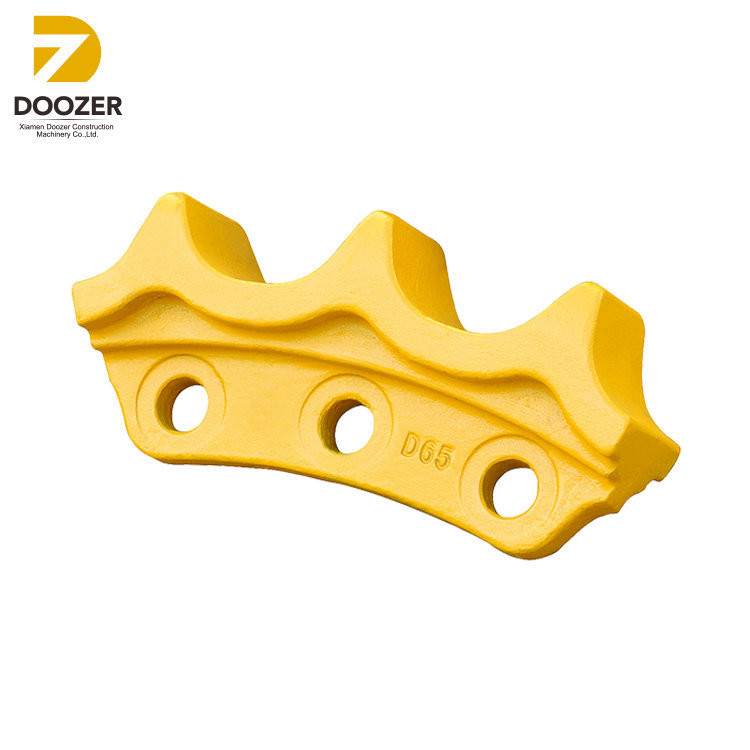

| Product name | Excavator / Bulldozer Sprocket Segment ,Undercarriage Parts |
| Material | 40SiMnTi / 50Mn / 40Mn /45MN or Customized |
| Color | Yellow or Black & Customized |
| Deepth | 4mm-10mm |
| Technique | Forging or Casting |
| Finish | Smooth |
| Hardness | HRC50-56 / HRC52-58 |
| Warranty time | One Year / 2000 hours(Normal life 4000 hours) |
| Packing | Standard exported wooden pallet Fumigate seaworthy packing |
| Time of delivery | Within 30 davs after contact established. |
| Port of shipment | XIAMEN Port |
| OEM&ODM | Acceptable |
| Payment terms | T/T or L/C at sight |
| Technical Requirements |
1.Castings processing must produce according to requirements and drawings 2.The workpiece is annealed to eliminate internal stress , the surface sand should be clean .Tooth tooth relative to the standard , the error should be controlled within 5 range . 3.The modulation of heat treatment hrc30-36 , surface frequency quenching , tempering thesurface hardness of hrc48-hrc54 , hardened layer 5-9mm , core hardness of HRC28 ormore , hardened layer microstructureRequired to achieve the m4-6 stages . 4.The mechanical tensile strength & N / mm2 > 620 , yield strength & N / mm2 > 375.
|
