telescope arm for Komatsu excavator PC300-7
PC300-7.
Our company Xiamen Doozer Construction Machinery Co.,Ltd. is specializing in manufacturing and export Telescopic dipper arm, which can fit to full range of excavator models,such as Komatsu,Hitachi,Kobelco etc.
Quantity
Application

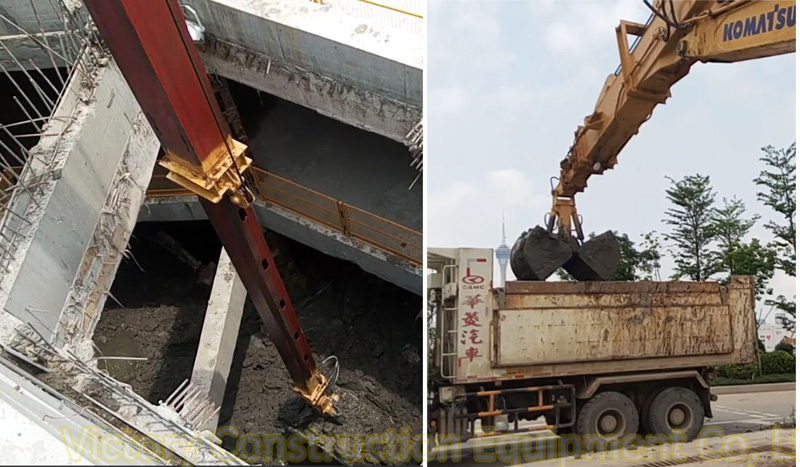

Telescopic dipper is specialize in carring out or picking up material from a pit in an confined space, and yet a long reach boom attachment still deems to be too cumbersome. It is widely used in deep foundation pit of bridge, Metro construction.
Charactaristics
- Well fit excavator class from 15ton to 60ton
- Working in confined space
- Max. exerting excavator working range in depth

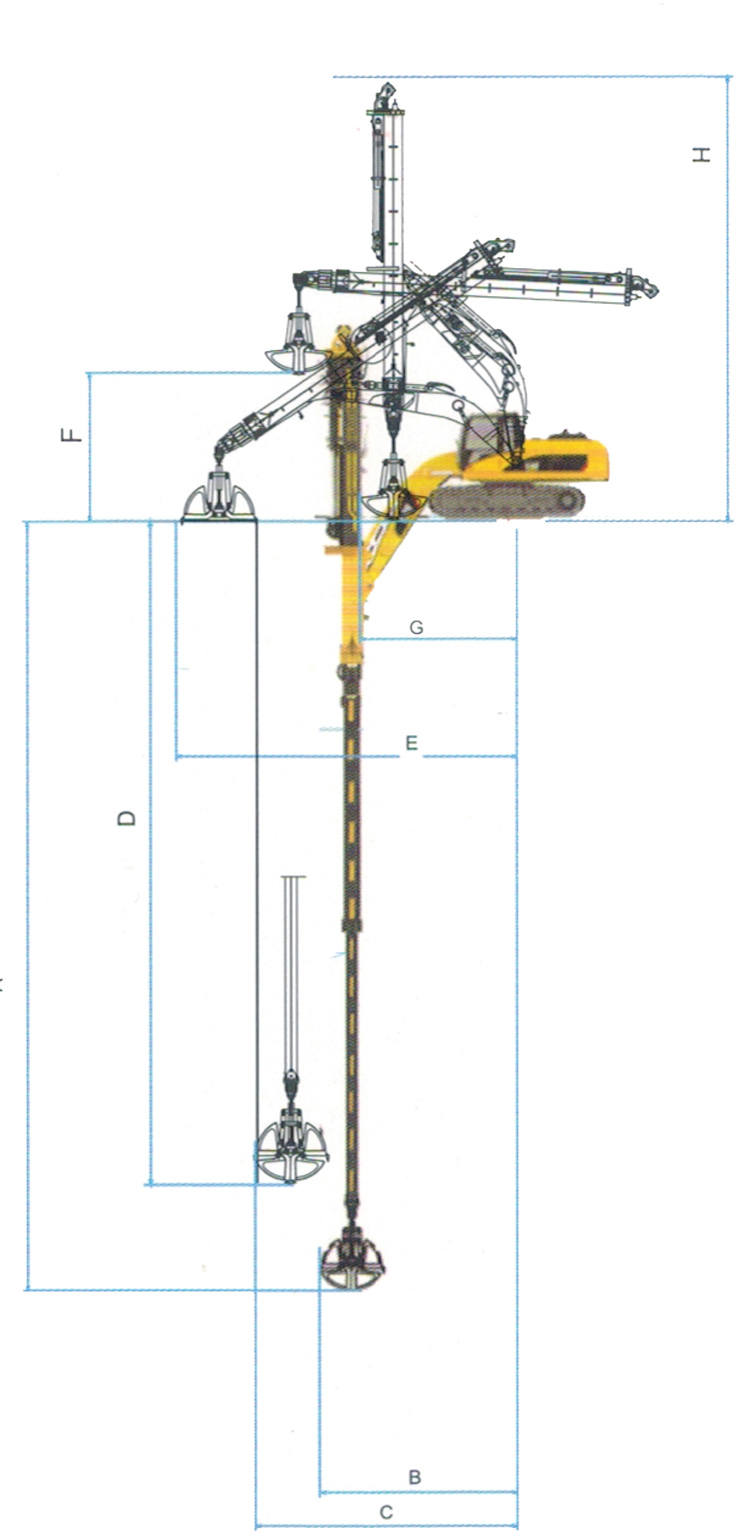

Parameter of telescopic dipper arm
| Excavator size(T) | ≧15t | ≧23t | ≧36t |
| A Max. Vertical Digging Depth(mm) | 45200 | 22490 | 27180 |
| B Max. Vertical Digging Depth (Reach Max. Working Radius) (mm) | 4670 | 5845 | 6400 |
| C Max. Vertical Digging Radius (mm) | 6430 | 7445 | 8530 |
| D Digging Depth (Reach Max. Vertical Digging Radius) (mm) | 11825 | 19920 | 22370 |
| E Max. Working Radius (mm) | 7950 | 9835 | 11250 |
| F Max. Unloading Soil Height (mm) | 2870 | 4465 | 5770 |
| G Min. Turning Radius (mm) | 3980 | 4485 | 5460 |
| H Height of Min. Turning Radius (mm) | 9475 | 13580 | 16675 |
| Weight (Kg) | 3600 | 4600 | 5600 |
| Clamshell Bucket Capacity (m3) | 0.3 | 0.6 | 1.2 |
| Product Size (LxWx H) (mm) | 6970 x 872 x 1492 | 9643 x 872 x 1492 | 12390 x 872 x 1492 |
