grease and salt bulldozer D5H xl track link 106-1637 track chains CR5465 lubricated links Assy for D5H dozer from China Manufacturer - XIAMEN DOOZER CONSTRUCTION MACHINERY CO., LTD.

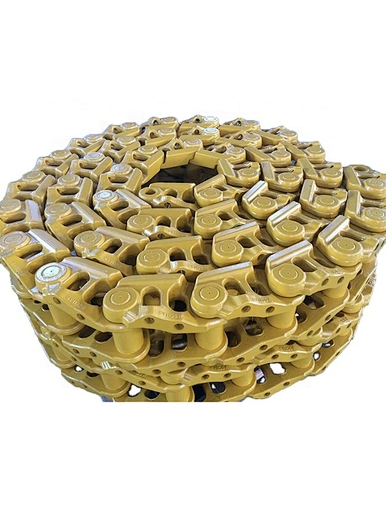

grease and salt bulldozer D5H xl track link 106-1637 track chains CR5465 lubricated links Assy for D5H dozer

price

$800.00 - $1500.00 / piece

Model NO. D5H

minimum order 1 piece

Country of Origin XIAMEN

Quantity

CR5465 lubricated links D5H grease and salt bulldozer D5H xl track link 106-1637 track chains 106-1636/35

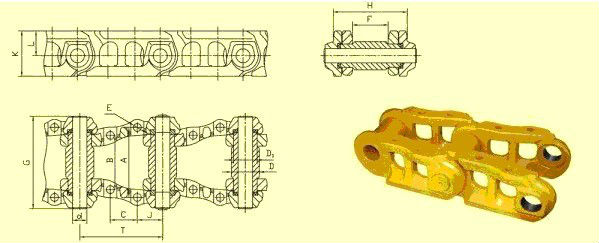

Technical Parameters For Bulldozer Track Link Assembly
No	Model	T	A	B	C	D	D1	d	E	F	G	H	J	K	L	Applicable Model
1	T260MA	260.35	234.9	184.1	76.2	92	88.74	57.33	27.5	132.9	317	274.9	87.3	160	85	D335x39
2	T260MB	260.35	234.9	184.1	76.2	88.74	88.74	57.33	27.5	132.9	317	274.9	87,3	160	85	D355A/Cx39
3	T260MC	260,35	234.9	184.1	76.2	92	88.74	57.33	26.5	132.9	317	274.9	87.3	160	85	D9H D9Gx39
4	T260MD	260.35	234.9	184.4	76.2	88.74	88.74	57.33	26.5	132.9	317	274.9	87.3	160	85	D9D/E/G/H
5	T260ME	260.35	234.9	184,4	76.2	85.3	85.3	57.33	27.5	132.9	317	274.9	87,3	152	79	SLAT CONVEYOR
6	T250MA	250.45	215.9	171.5	82.5	82.28	82.28	57.78	22.8	121.5	282	250.9	76.8	139.7	79.4	TD25
7	T250MB	250	256	206	88	90	85.35	57.33	27.5	138	320	296.4	84	172	97	T25Q3x42
8	T228MA	228.6	219,8	169	76.2	79	77.33	48.83	24.5	121.6	289	244	71.4	138	78	D155Ax41 Ty320x41 Sd7x43 D150A D155C
9	T228MB	228.6	201.6	169.8	76.2	80.4	76.13	50.83	23	124.4	290	246.8	71.4	138	78	D8Kx39
10	T228MD	228.6	201.6	169.8	76.2	77.2	76.13	50.83	23	124.4	290	246.8	71.4	138	78	D8Hx39
11	T216MA	216	184	146	76.2	71.3	71.3	47.13	20.5	108	249	208	64.3	125.5	70	Sd7x40
12	T216MB	216	184	146	76.2	74.3	71.3	47.13	19.5	106	249	209.2	63	129	70	D85x38 IY220x38 7Y230x39 D75S D96S
13	T216MC	216	184	146	76.2	74.3	71.3	47.67	49.5^	108	249	208	64.3	125.5	70	D7Gx38
14	T216MD	216	184	146	76.2	74.3	71.3	47.13	19.5	108	249	208	64.3	125.5	70	D7Gx38
15	T216ME	216	184	146	76.2	71.3	71.3	47.13	19.5	108	249	208	64.3	125.5	70	D7E/F/G
16	T216MF	216	184	146	76.2	71.3	71.3	47.67	19.5	108	249	208	64.3	125.5	70	D7GX38
17	T203GC	203	168	152	80	64.95	64.95	44.47	16.5	112.8	251	205.8	53.5	121	63	TH100
18	T203G1	203	197	157	70	70	65	44.5	20.5	113	273	221	62	123	71	T170x38
19	T203MA	203	184	146	72	65.94	64.95	44.95	20.5	108	249	208	60	115	63	T120x37T140x38
20	T203MB	203.2	178.4	138.4	72	70	66.8	44.68	20.5	101.6	240	201.6	58	116.5	64.4	60x38/42
21	T203MC	203.2	178.4	138.4	72	66.8	66.8	44.68	19.5	101.6	240	201.6	58	116.5	64.4	D60AX37 D65AX37 TY160x37
22	T203MD	203	184	146	76.2	65.94	65.94	44.95	20.5	108	249	208	58	115	63	7120x42
23	T203ME	202.8	171.4	133.4	76.2	66.69	66.69	44.47	19.5	102.4	229	193.2	58	121.5	69	D6Cx44
24	T203MF	2028	171.4	133.4	76.2	69.7	66.69	44.47	19.5	102.4	229	193.2	58	121.5	69	D6Dx36
25	T203MG	2028	185.3	137.3	68	72.8	69.78	44.47	20.5	101.3	230	192.3	64	125	72	D6Gx39
26	T203MH	203.2	178.4	138.4	72	70	66.8	44.68	19.5	101.6	240	201.6	58	116.4	64.4	D60EF/P/S S65E/P/S
27	T203MJ	203.2	178.4	138.4	72	66.8	66.8	44.68	20.5	101.6	240	201.6	58	116.4	64.4	IY160PD165
28	T203MJ	202.8	184	146	76.2	66.8	66.8	44.68	19.5	107.2	246	209.2	58	117.5	65.5	D7D7CD
29	T190MA	190	1604	124.4	62	59,29	59.29	38.08	20.5	85.6	216	176.4	58	105	58	SD13X38
30	T190MC	190	1604	124.4	62	60	55.13	38.08	20.5	85.6	216	175.6	58	105	58	D55x36D57
31	T190MD	190	1604	124.4	62	60	55,13	38.08	18,5	85.6	216	175.6	58	105	58	D55X39D57
32	T175MA	175	158.4	124.4	57	58,5	55.26	38.26	16.5	84.6	216	173.2	54	101.5	565	7Y100x39
33	T175MB	175	158.4	122.4	57	58.5	55.26	38.26	18.5	84.6	216	173.2	54	101.5	56.5	D40 D45 D50 D53
34	T175MC	175	158.4	122.4	57	5526	55.26	38.26	16.5	84.6	216	173.2	54	101.5	56.5	D40 D41 D45 D50 D53 D58E/P D63E
35	T175MD	175,5	144,5	125.4	58.7	50.75	58.75	36.55	16.5	90.6	211	172.6	57.2	103.2	59.7	D5x39 D5B
36	T174GA	174	94	94	58	45.3	45.3	27.6	10,6	0	153	126.5	58	93.6	50	收获机
37	T171MA	171.45 108		108	60.3	50.8	50.8	33.75	16	70	179		55.57	95	51	D4 D4C
38	T171MB	171	144.5	125.4	58.7	53.82	53.82	36.61	16.5	86.3	208	175.3	55.5	100	53.5	T100x39
39	T171MC	171	1445	125.4	587	53.82	53.82	36.61	18.5	86.3	208	175.3	55.5	100	53,5	T100x39
40	T171MD	171	144.5	125.4	587	53.95	53.95	36.61	16.5	90.4	209	173.4	55.5	101.6	58,8	D6 D6Bx40
41	T171ME	171.45	108	108	60.3	53.82	53.82	33.75	15	70	179	144.8	55.57	95	51	D4D D4E
42	T171MF	171.45	108	108	60.3	53.82	53.82	33.75	16.5	70	179	144.8	55.57	95	51	D4D D4E
43	T170GA	170	108	108	59	52.97	52.97	35	16.2	74	182	154	55	97	54	FLB
44	T170GB	170	124	106	59	52.97	52.97	35	16.2	74	182	154	55	97	54	FL9
45	T170GC	170	124	106	59	56	52.97	35	16.2	74	182	154	55	97	54	FL9
46	T170MD	170	124	106	59	56	52.97	35	16.2	74	182	154	55	97	54	FL9
47	T160GA	160	99	99	56	44.98	44.98	30.08	14.5	64	161	135	52	83	46	FL6
48	T160MA	160	99	99	56	44.98	44.98	30.08	14.5	64	161	135	52	83	46	FL6
49	T155GA	155.6	88.9	88.9	57.1	43.12	43.12	28.93	12.5	59.5	156	123.5	49.2	76.2	41.3	1700 1800
50	T155GB	155.6	104.7	88.9	54.8	50	46.98	28.58	14.5	60.5	1596	128.5	48.7	88	49	D3Cx38
51	T155GC	155.6	104.7	88.9	54.8	46.98	46.98	28.58	14.5	60.5	159	128.5'	48.7	88	49	D3D3BD4B
52	T154MB	154	112.4	82.4	57	46.55	46.55	30.25	14.5	49.4	169	125.4	44	87	47	DG0D31x41
53	T140GA	140	86	86	53	37	37	25	12.5	57.6	140	112.4	44	70	38	FL4
54	T135MA	135	99	72	43.2	41.18	41.18	23.98	12.5	45	141	105	42.5	75	40	D20D21
