$190.00 - $195.00 / piece
- Applicable Industries:Machinery Repair Shops
- Showroom Location:None
- Place of Origin:Fujian, China
- Brand Name:Doozer
- Warranty:6 Months, One Year/2000 - 4000 hours
- After Warranty Service:Online support
- Local Service Location:None
- After-sales Service Provided:Online support
- Product name:D7G 4S8970 3P1039 Bulldozer Sprocket Segment
- Key word:Sprocket Segment,Construction Machinery Parts
- Material:40SiMnTi / 50Mn / 40Mn /45MN or Customized
- Color:Yellow or Black
- Surface Hardness:HRC50-56 / HRC52-58
- Deepth:4mm-10mm
- Finish:Smooth
- Application:Bulldozer / Excavator Drive Sprockets
- Certification:ISO9001:2008ISO14001:2004GB/T28001:2001 .

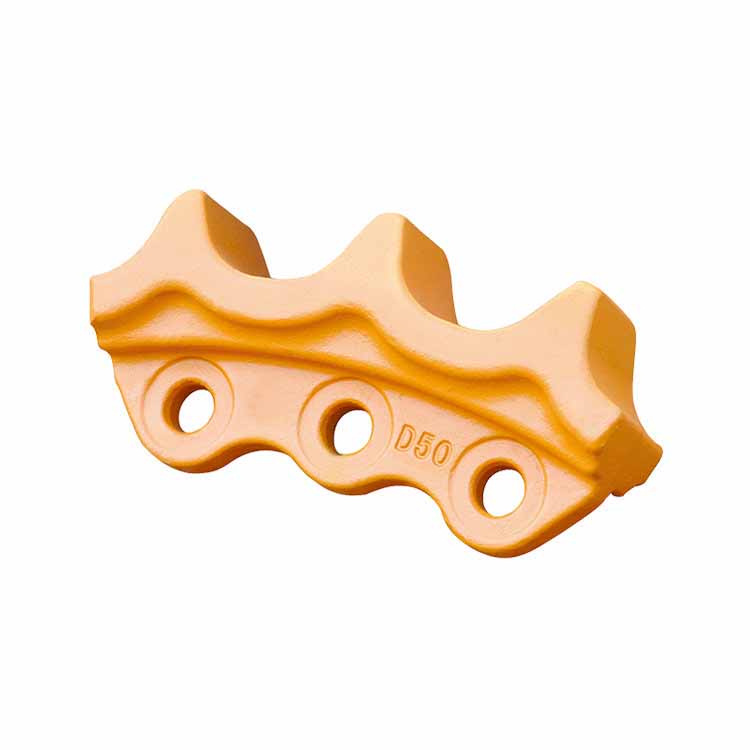

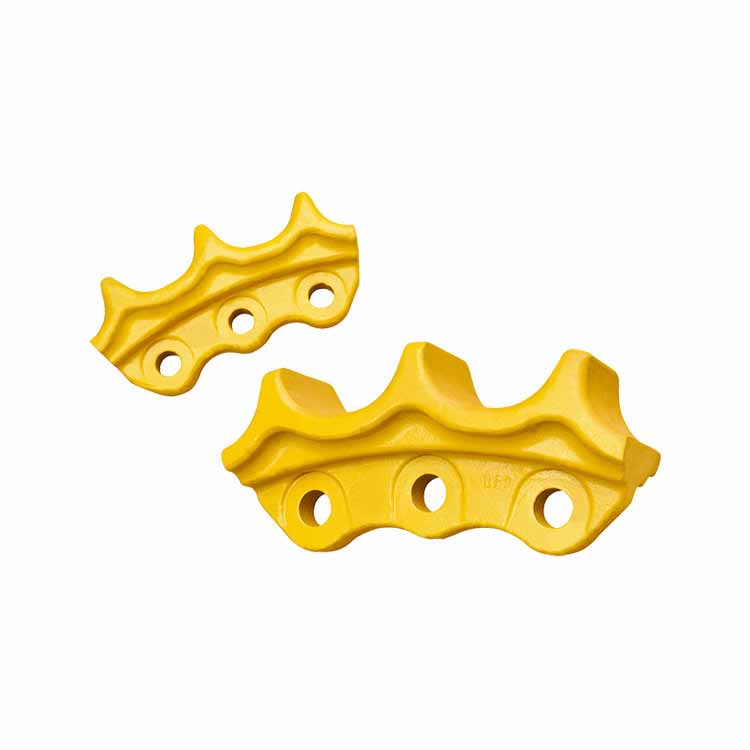

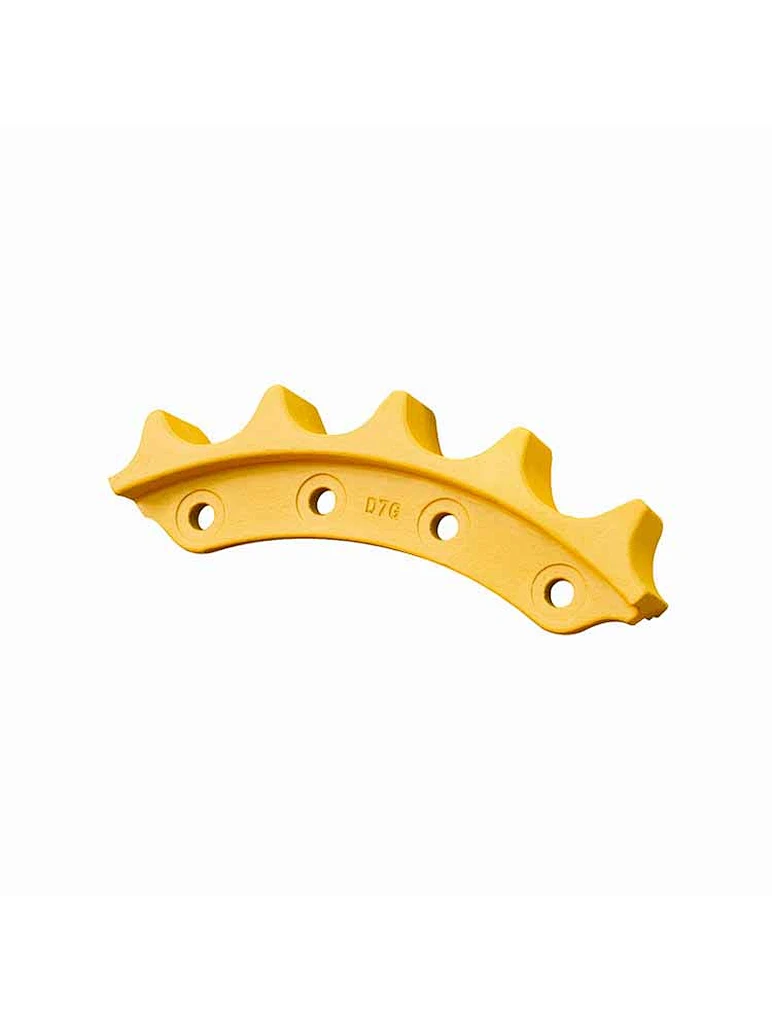

High Precise D7G 4S8970 3P1039 Construction Machinery Parts Bulldozer Sprocket Segment
| Product name | Excavator / Bulldozer Sprocket Segment ,Undercarriage Parts |
| Material | 40SiMnTi / 50Mn / 40Mn /45MN or Customized |
| Color | Yellow or Black & Customized |
| Deepth | 4mm-10mm |
| Technique | Forging or Casting |
| Finish | Smooth |
| Hardness | HRC50-56 / HRC52-58 |
| Warranty time | One Year / 2000 hours(Normal life 4000 hours) |
| Packing | Standard exported wooden pallet Fumigate seaworthy packing |
| Time of delivery | Within 30 davs after contact established. |
| Port of shipment | XIAMEN Port |
| OEM&ODM | Acceptable |
| Payment terms | T/T or L/C at sight |
| Technical Requirements | 1.Castings processing must produce according to requirements and drawings 2.The workpiece is annealed to eliminate internal stress , the surface sand should be clean .Tooth tooth relative to the standard , the error should be controlled within 5 range . 3.The modulation of heat treatment hrc30-36 , surface frequency quenching , tempering thesurface hardness of hrc48-hrc54 , hardened layer 5-9mm , core hardness of HRC28 ormore , hardened layer microstructureRequired to achieve the m4-6 stages . 4.The mechanical tensile strength & N / mm2 > 620 , yield strength & N / mm2 >375. |
| Our service | 1. Professional Engineers Give Us Size, Give You products". Engineers here with rich experience. Our engineers have dealed with this line for more than 15 years. 24 Hours Online, Best service here for you anytime. Any question, please free contact us. Focus On Quality Assurance.Keep The Enough Stock. Most of our prouducts have in stock, we can ship out your order in the shortest time. We can offer the material report and test report. If the product was broken in quality guarantee period, we can ship new one to you. |
