Heavy Duty High Quality Hydraulic High Effective Excavator Rotating Bucket
price
$400.00 - $1500.00 / piece
excavator tilt bucket
1 piece
xiamen China
Quantity
excavator rotating bucket with lowest price , Kobelco excavator tilt bucket
Whatever Products you choose, you always choose for quality and you will see that Doozer bucket will
guarantees you quality.
You will keep being satisfied with Doozer bucket and proud to have it! It is important for us!
Application:
Slope-surface trimming, waterways dredging, water ditching, etc.

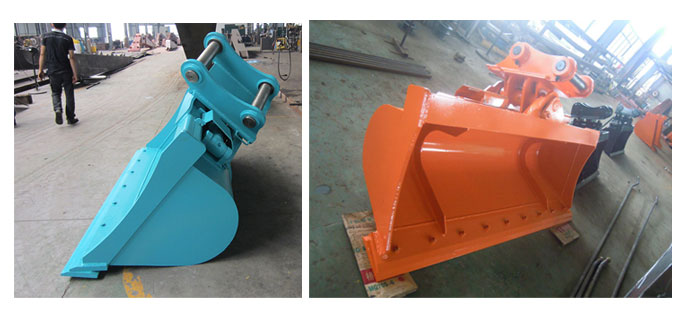

Excavator tilt bucket image
Characteristic
- Tilt left and right 45 degree
- Double cutting edge fixed by bolt, lower one is removeable
- tilt cylinder with protector
specification of tilt bucket
| Model | Internal width(mm) | Self weight(kg) | Excavator tonnage(ton) |
|---|---|---|---|
| TB50 | 1016(40'') | 340 | 3~5 |
| TB100 | 1270(50'') | 580 | 6~10 |
| TB120 | 1626(64'') | 740 | 11~16 |
| TB200 | 1778(70'') | 920 | 17~20 |
| TB250 | 1830(72'') | 1120 | 21~24 |
| TB300 | 2032(8'') | 1350 | 25~30 |
| TB350 | 2135(84'') | 1580 | 31~35 |
Pictures of tilt bucket we made for customer
2m wide tilt bucket, double cutting edge, for 12-15ton excavator

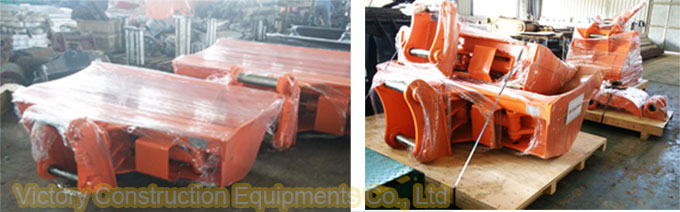

Tilt Bucket for EX200 and EX120 excavator

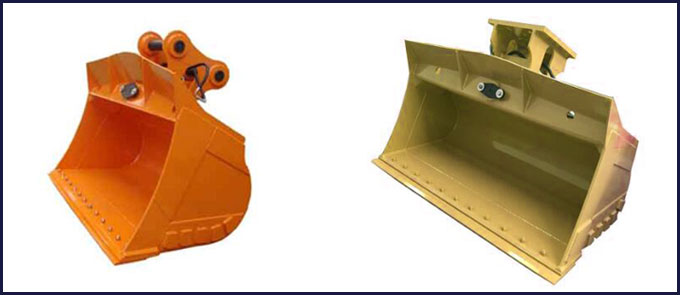

Tilt bucket with spill guard and resistant wear block on side blade

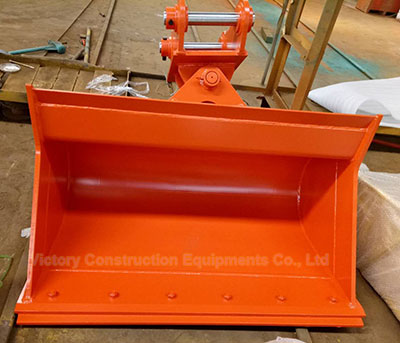

ZX75 Tilt Bucket, 0.45cbm capacity
