$9000.00 - $10000.00 / piece
- Condition:New
- Applicable Industries:Machinery Repair Shops, Construction works , Energy & Mining
- Showroom Location:None
- Place of Origin:Fujian, China
- Brand Name:volvo long reach arm
- Warranty:6 months
- After Warranty Service:Online support
- Local Service Location:None
- After-sales Service Provided:Online support, Free spare parts
- color:Compatible Color volvo long reach arm
- material:Q345/Q460/NM360/NM400/WH60)/volvo long reach arm
- Technique:Forging or Casting volvo long reach arm
- Hardness:HRC47-60 volvo long reach arm
- certificate:ISO9001-2008 volvo long reach arm
- type:standard,long reach volvo long reach arm
- application:Long reach work for volvo long reach arm
- Accessory included:bucket,linkage,bucket cylinder,volvo long reach arm
- Maximum length:34m volvo long reach arm
- finish:Sand-blasted and painted volvo long reach arm
excavator volvo long reach arms/ extension stick arm/excavator boom and arm for volvo
1.Product information of long reach excavator arms
Material | Q345B,Q690D etc |
Quality | Heat-treated,HRC40-55 |
Colors | Compatible Color |
Technique | Forging/casting |
Finishing | Sand-blasted and painted |
Models | Komatsu,Hitachi,Cater,Kato,Kobelco,Simitomo,Hyundai etc |
Warranty time | 2000 hours |
Certification | ISO9001 |
excavator tonnage apply | From 6ton to 360ton |
application | Long reach work for excavator |
Maximum length | 34m |
We are specializing in the production of various kinds of standard booms, arms,standard arm.long reach arm,short arm

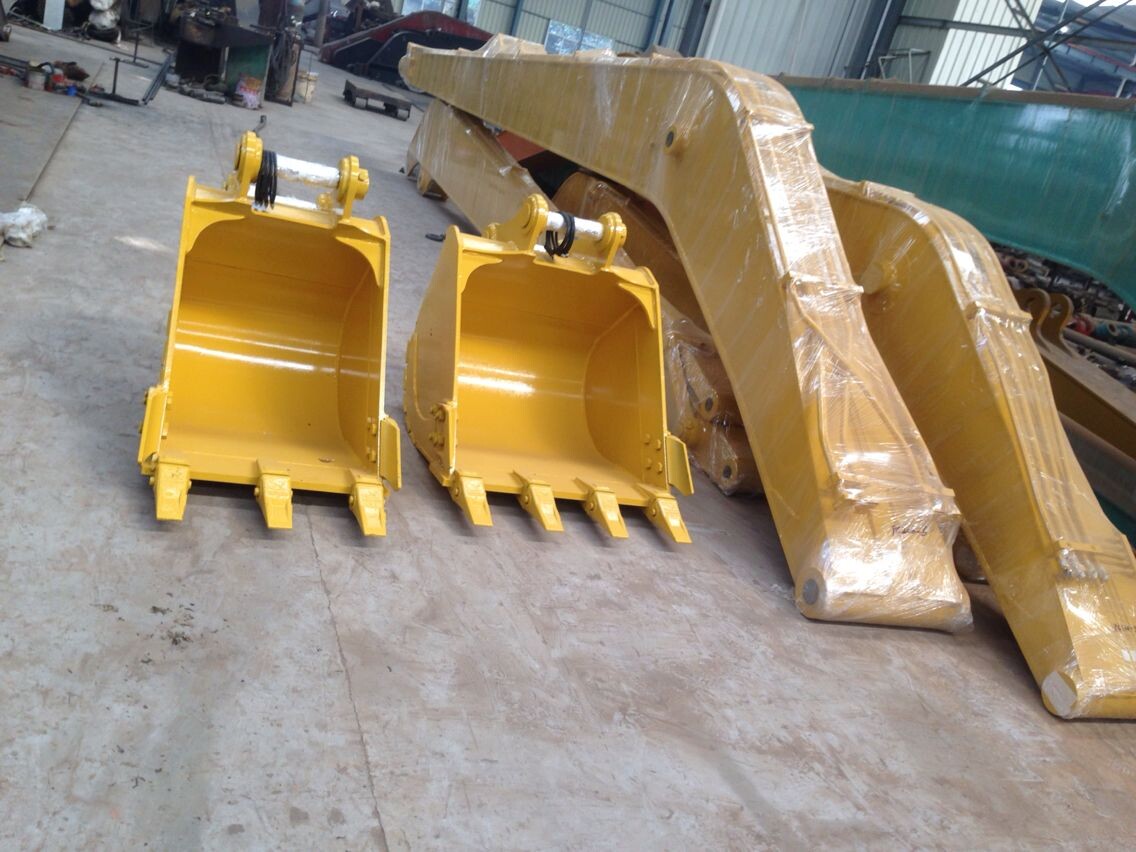

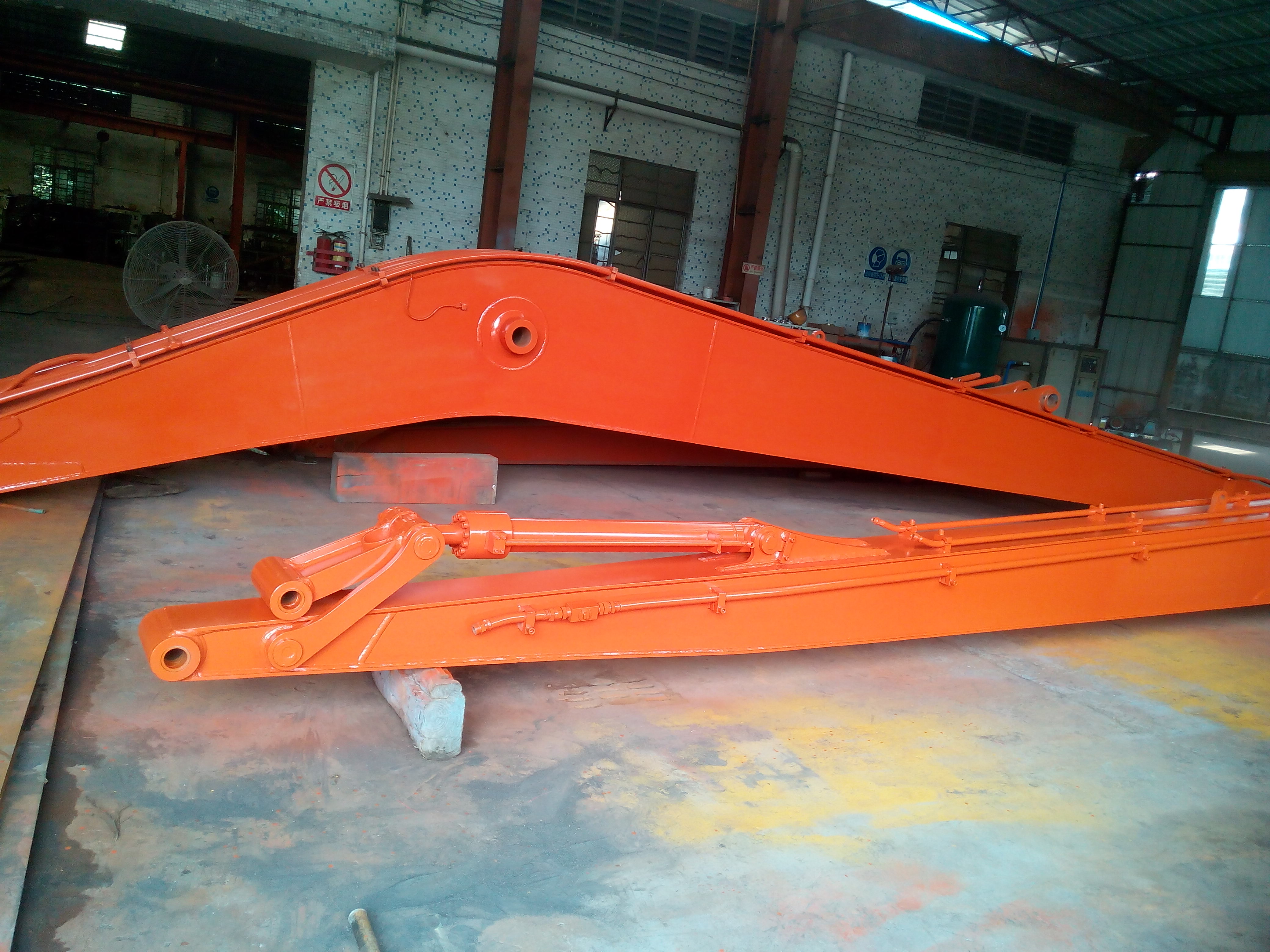

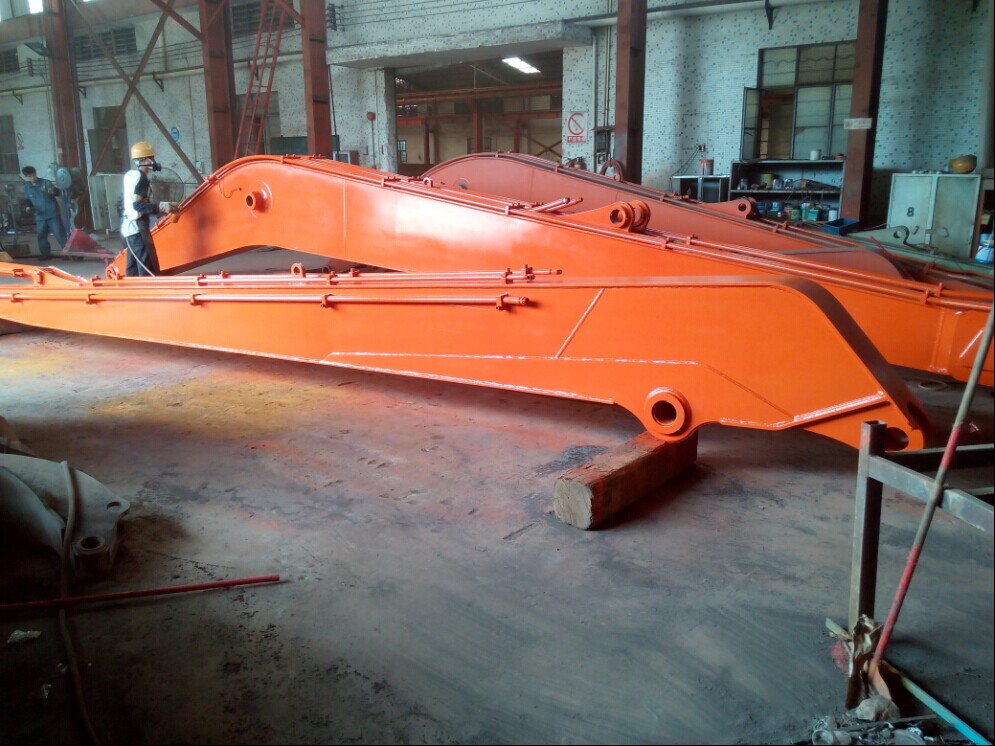

2.The more image of long reach excavator arms

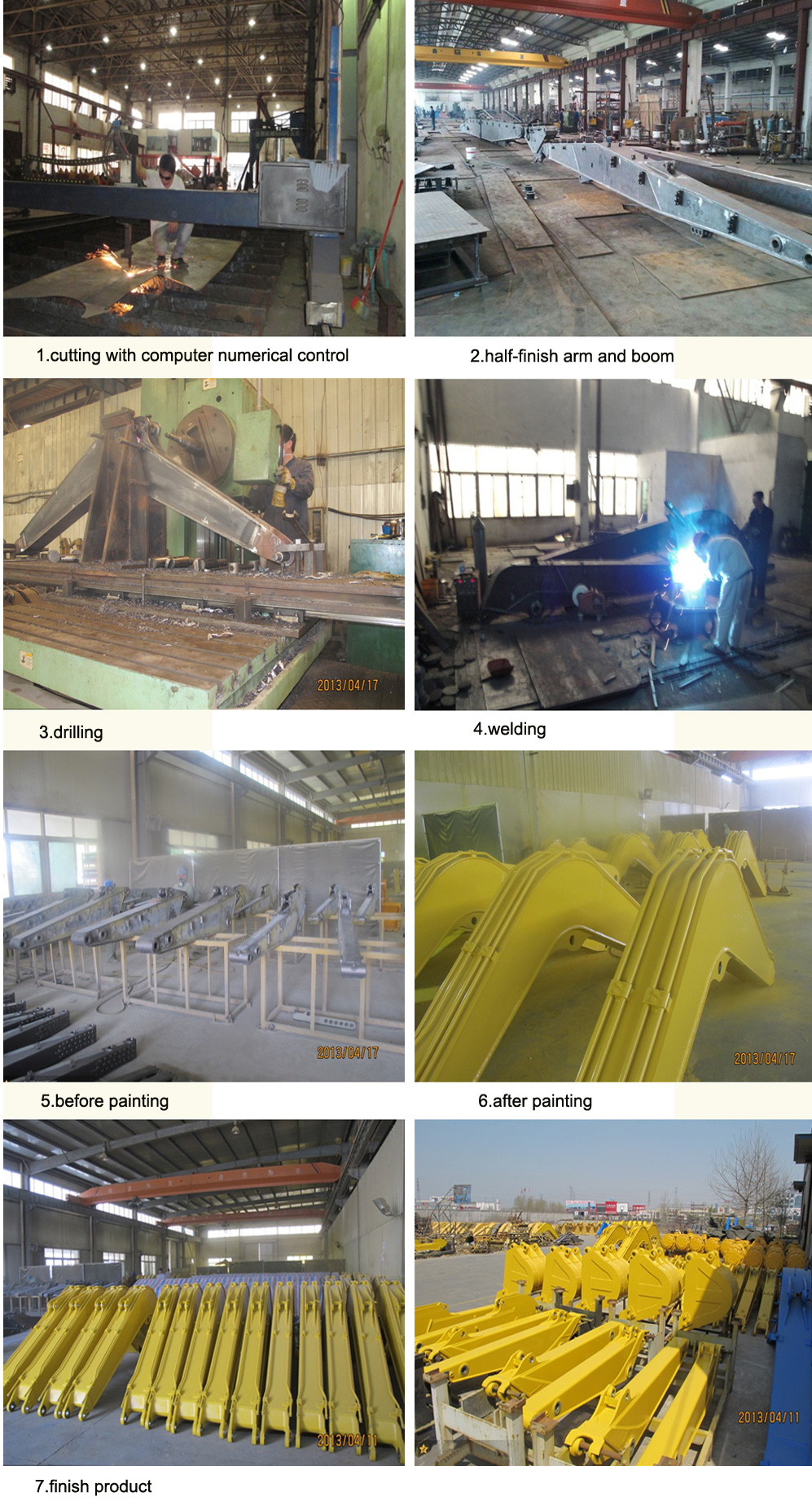

3.The process of boom and arm
4.Good services:
Fast reply and any problem can solve at prompt time with our sincerity ,meet the demand of you ;
Below is some parameters for some models,just for reference:
Long Reach Booms for Komatsu excavators: | ||||||
Models | Total Length of Boom &Arm(mm) | Weight(KGS) | Bucket Capacity(m3) | Max.Digging Height(mm) | Max.Digging Depth(mm) | Overall Height(mm) |
PC120-8 | 13000 | 3000 | 0.3 | 11300 | 9000 | 2900 |
PC200-8 | 15380 | 4000 | 0.4 | 12510 | 11340 | 2980 |
PC220-8 | 15380 | 4200 | 0.4 | 12610 | 11370 | 3040 |
PC300-8 | 18000 | 5200 | 0.4 | 13720 | 13000 | 3210 |
PC350-8 | 20000 | 6000 | 0.5 | 14920 | 15000 | 3210 |
PC400-8 | 22000 | 6500 | 0.6 | 16100 | 16500 | 3400 |
Long Reach Booms for Caterpillar excavators: | ||||||
Models | Total Length of Boom &Arm(mm) | Weight(KGS) | Bucket Capacity(m3) | Max.Digging Height(mm) | Max.Digging Depth(mm) | Overall Height(mm) |
CAT120-5 | 13000 | 3000 | 0.3 | 11300 | 9000 | 2900 |
CAT200LC-5 | 15380 | 4000 | 0.4 | 12510 | 11340 | 2980 |
CAT220LC-5 | 15380 | 4200 | 0.4 | 12610 | 11370 | 3040 |
CAT300LC-5 | 18000 | 5200 | 0.4 | 13720 | 13000 | 3210 |
CAT350LC-5 | 20000 | 6000 | 0.5 | 14920 | 15000 | 3210 |
CAT400LC-5 | 22000 | 6500 | 0.6 | 16100 | 16500 | 3400 |
Long Reach Booms for Kobelco excavators: | ||||||
Models | Total Length of Boom &Arm(mm) | Weight(KGS) | Bucket Capacity(m3) | Max.Digging Height(mm) | Max.Digging Depth(mm) | Overall Height(mm) |
SK120-8 | 13000 | 3000 | 0.3 | 11300 | 9000 | 2900 |
SK200-8 | 15380 | 4000 | 0.4 | 12510 | 11340 | 2980 |
SK220-8 | 15380 | 4200 | 0.4 | 12610 | 11370 | 3040 |
SK300-8 | 18000 | 5200 | 0.4 | 13720 | 13000 | 3210 |
SK350-8 | 20000 | 6000 | 0.5 | 14920 | 15000 | 3210 |
SK400-8 | 22000 | 6500 | 0.6 | 16100 | 16500 | 3400 |
Long Reach Booms for Hyundai excavators: | ||||||
Models | Total Length of Boom &Arm(mm) | Weight(KGS) | Bucket Capacity(m3) | Max.Digging Height(mm) | Max.Digging Depth(mm) | Overall Height(mm) |
R135 | 13000 | 3000 | 0.3 | 11300 | 9000 | 2900 |
R215 | 15380 | 4000 | 0.4 | 12510 | 11340 | 2980 |
R220 | 15380 | 4200 | 0.4 | 12610 | 11370 | 3040 |
R225 | 18000 | 5200 | 0.4 | 13720 | 13000 | 3210 |
R275 | 20000 | 6000 | 0.5 | 14920 | 15000 | 3210 |
R300 | 22000 | 6500 | 0.6 | 16100 | 16500 | 3400 |
R375 | 24000 | 7000 | 0.6 | 17300 | 18000 | 3400 |
Long Reach Booms for Sumitomo excavators: | ||||||
Models | Total Length of Boom &Arm(mm) | Weight(KGS) | Bucket Capacity(m3) | Max.Digging Height(mm) | Max.Digging Depth(mm) | Overall Height(mm) |
SH120-5 | 13000 | 3000 | 0.3 | 11300 | 9000 | 2900 |
SH200LC-5 | 15380 | 4000 | 0.4 | 12510 | 11340 | 2980 |
SH220LC-5 | 15380 | 4200 | 0.4 | 12610 | 11370 | 3040 |
SH300LC-5 | 18000 | 5200 | 0.4 | 13720 | 13000 | 3210 |
SH350LC-5 | 20000 | 6000 | 0.5 | 14920 | 15000 | 3210 |
SH400LC-5 | 22000 | 6500 | 0.6 | 16100 | 16500 | 3400 |
SH450LC-5 | 24000 | 7000 | 0.6 | 17300 | 18000 | 3400 |
