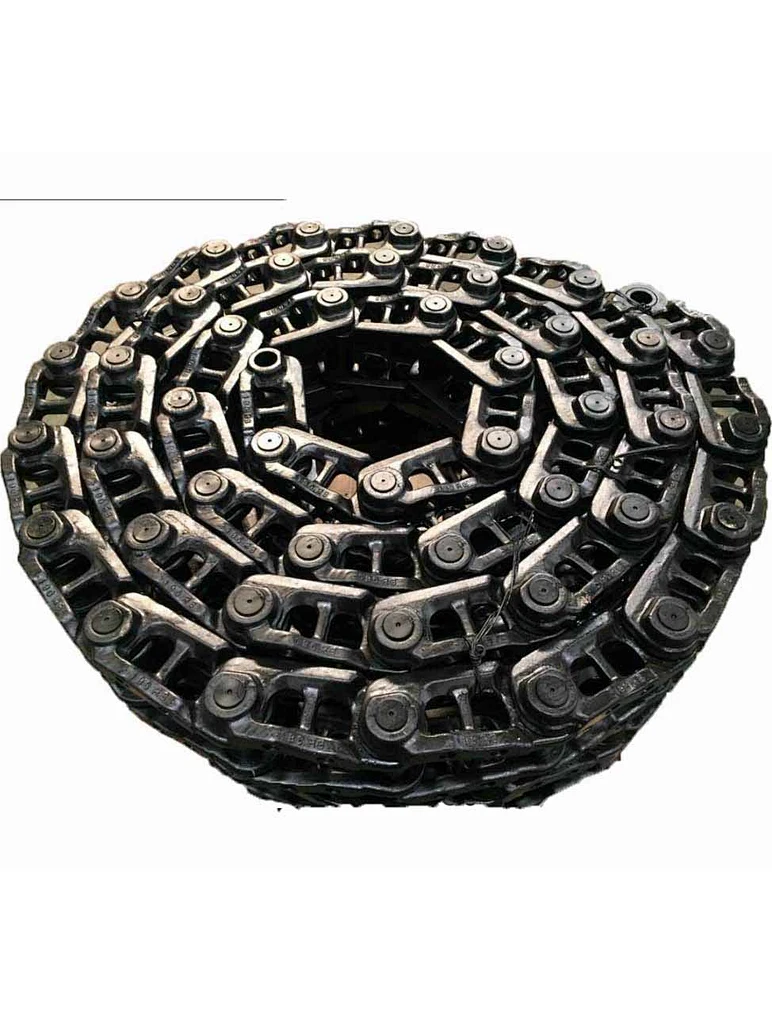

Hot sales excavator pc200 track chain excavator track link

price

$88.00 - $90.00 / piece

Model NO. pc450lc-8

minimum order 1 piece

Quantity

Product Details

Hot sales excavator pc450kc-8 top rollerpc450lc-6 upper roller pc450 excavator carrier roller

Material	40Mn2/35MnB
Finish	Smooth
Colors	Black or yellow
Technique	Forging casting
Surface Hardness	HRC50-56,deepth:4mm-10mm
Warranty time	2000 hour
Certification	ISO9001-9002
FOB Price	50-30000 USD
MOQ	2 pcs
Delivery Time	Within 30 days after contract established

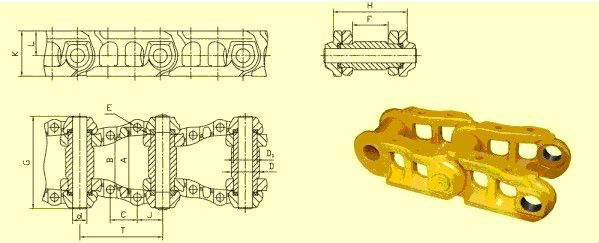

Technical Parameter:

No.	Model	T	A	B	C	D	D1	d	E	F	G	H	J	K	L	Applicable Machine
1	W260MA	260.35	234.9	184.1	76.2		88.74	57.33	27.5	132.9	317	274.9	87.3	160	85	RH40EX 48
2	W260MB	260.35	234.9	184.4	76.2	85.34	85.34	57.15	27.5	132.9	317	274.9	87.3	152	79	Ex700x47
3	W228MC	228.6	184	144	76.2	71・3	71.3	47.13	24.5	109	251	210	71.4	129	70	PC400-6X48
4	W228ME	228.6 ,216	200	149.2	76.2	73.97	73.97	48.83	24.5	101.8	269	224.2	71.4	138	78	EX300-5x45 EX330-5x48 PC300~6x45
5	W216MD	216	184	146	76.2	74.3	71.3	47.13	24.5	106	249	209.2	63	129	70	Sh330x47
6	W216ME	216	178.4	140.4	76.2	66.8	66.8	44.68	22.5	101.8	240	197.8	63	116	64	CAT330x45
7	W216MF	216	178.4	140.4	76.2	71.3	71.3	47.13	22.5	102.4	244	202.4	64.3	125.5	70	PC400T/3X49 EX400Tx49 Dh450x53
8	W216MH	216	190	146	76.2	67.8	67.8	46	22.5	103	245	211	69	124	68	CAT325z48
9	_W216MI	216	184	129	76.2	71.3	71.3	47.13	22.5	106	249	209.2	63	129	70	Altas2306
10	W203MC	202.8	179	112	72	64	64	42	20.5	94	231	194	62	115	64	PC300-5X47
11	W203MCT	202.8	162	138.4	72	66.6	63.92	41.98	20.5	75	213	176.5	62	115	64	EX270T/5x47DH280LCx51 EX300T/2/3x47
12	W203MD	203.2	178.4	148.2	72	66.8	66.8	44.68	22.5	101.6	240	201.6	58	116.4	64.4	R944x51
13	W206ME	203.2	178.4	124.4	72	66.8	66.8	44.68	20.5	101.6	240	201.6	58	116.4	64.4	PC200-5x45 DH220x49 SW21ft22W230 HXW200x46
14	W203MH	203.2	186.2	124.4	76.2	66.8	66.8	44.68	19.5	112.4	251	212.4	58	116.4	64.4	Altas2306
15	W190MA	190	160.4	119.6	62	59.29	59.29	38.09	20.5	85.6	216	176.4	58	105	58	CAT200BX45 CAT320x45 CAT240Bx46 Sk200x45
16	W190MA-1	190	160.4	124.4	82.8	59.39	59.39	38.17	20.5	82.8	213	176.4	58	105	58	PC20O3x45
17	W190MC	190	155.6	124.4	69	58.75	58.75	36.55	20.5	82.2	218	174.2	58	106	60	PC200-3x45
18	W190MD	190	160.4	125.4	62	59.29	59.29	38.09	18.5	85.6	216	176.4	58	105	58	EX20(Mx48
19	W190ME	190	160.4	86.4	62	59.29	59.29	38.09	18.5	85.6	216	176.4	58	105	58	PC100-5/6x40 PC120-5x40 PC120/130-6x42
20	W175MA	175.5	144.5	122.4	58.7	58.75	58.75	36.56	18.5	77.5	211	169.5	57.2	103.2	59.7	HD800 Hd700
21	W175MB：	175	102.4	86.4	57	46.55	46.55	30.26	16.5	50.4	167	122.4	54	86	47	PC100-5/6x40 PC120-5X40 PC120/130-6x42
22	W175MC	175	158.4	122.4	57	55.26	55.26	38.26	18.5	84.6	216	173.2	54	101.5	56.5	Hd800 Hd700
23	W175MD	175	102.4	86.4	57	48.55	48.55	32.26	16.5	50.4	167	122.4	54	88	48	PC100-5/6x40 PC120-5x40 PC120/130-6x42
24	W171MA	171.45	144.5	125.4	58.7	53.95	53.95	36.61	16.5	87.7	209	171.7	5456.3	101.6	58.8	R200x54 R210LC K907
25	W171MV	171.45	108	108	60.3	50.66	50.66	33.75	16.5	70	179	144.8	55.57	95	51	EX100 Ex120 R900 R902 K904 K905 CAT110 CAT120
26	W171MD	171.45	108	108	60.3	50.66	50.66	33.75	14.5	70	179	144.8	55.57	95	51	HD400x43 R901 R911 R912 R921 R922 R925
27	W171ME	171.45	108	108	60.3	47.26	47.26	30.25	16.5	58.6	167	129	55.57	90.2	49.5	EX130x45 SK120x43 SK100
28	W171MF	171.45	108	108	60.3	83.82	53.82	33.75	16.5	70	179	144.8	55.57	95	51	EX100
29	W154MA	154	89	73	57	41.42	41.42	24.21	14.5	45	128	104	44	74	40.5	PC60-6X38 Pc75x39 Sk60
30	W154MB	154	112.4	82.4	57	46.55	46.55	30.25	14.5	49.4	161	125.4	44	87	47	PC100^/2x43 PC100-3X46 Hd350x43
31	W154MC	154	90	90	55	46.55	46.55	30.25	14.5	56	157	127	49	80	42	EX60T/2/3/5
32	149GA	149	84.2	84.2	57	38	' 38	25	12.5	56	126	114	46	77	41.8	CW341x37 CW351X37 ECM350 ECM450
33	W140GA	140	86	86	52	37	37	25	12.5	57.6	140	112.4	44	70	38	RH2.5
34	W140MB	140	86	86	52	40.2	40.2	28.2	14.5	55	138	115	45.5	75	40	DBC8085x42 KY70x40
35	W140MC	140	94	94	52	41.98	41.98	26.98	12.5	63	146	123	44	77	41	SPIRALFRILLING MACHINE
36	W135MA	135	72	72	43.2	41.18	41.18	23.98	12.5	45	141	105	42.5	75	40	PC60-3/5x42 DBC8060x41
37	W135MAT	135	72	72	43.2	41.18	41.18	23.98	12.5	48	141	108	42.5	75	40	JV65-7
38	W135MA-2	135	72	72	43.2	41.18	41.18	23.98	12.5	46	138	106	42.5	75	40	SWE50
39	W135MG	135	83	83	45	41.18	41.18	23.98	14 5	56	151	116	42.5	75	40	HD250X43
40	W135GB	135	74.4	74.4	46	35.24	35.24	22.68	12 5	51	133	99	41	65	35	Ky60x39
41	W135GB-1	135	64	64	46	35.24	35.24	22.68	12.5	40.6	122	88.6	41	65	35	SWE50
42	W135GC	135	63.8	63.8	46	35.24	35.24	22.68	12.5	40.4	122	87.4	41	65	35	PC40-7 SK45
43	W135GD	135	80	80	46	35.24	35.24	22.68	12.5	52	139	105	41	65	35	EX40 EX45
44	W135GE	135	58	58	46	35.24	35.24	22.68	12.5	34.6	116	81.6	41	65	35	MMHII KY50X35
45	W135GF	135	55	55	46	35.24	35.24	22.68	12.5	31.6	113	78.6	41	65 “	35	PC40-5/6
46	W101GA	101.6	55	55	22	32.16	32.16	19.16	10.5	35	93	76	39.8	63	37	EX22 EX25 EX30 EX35 PC10 PC20 PC30 PC35R
47	W101GB	101.6	64	64	22	32.16	32.16	19.16	10.5	44	102	85	39.8	63	37	IHI30J
48	W101GC	101.6	65	65	22	32.16	32.16	19.16	10.5	45	103	86	39.8	63	37	SK025 SK030 SK032 SK035
49	W101GD	101.6	52	52	22	32.2	32.16	19.16	10.5	32	90	73	39.8	65	37	PC20
50	W90GA	90	/	/	/	22.2	22.2	14.2	/	27	80	59	/	46	23	SK015
