excavator Hitachi Zaxis 200/EX200/EX220 560mm/600mm single track shoe track pad from China Manufacturer - XIAMEN DOOZER CONSTRUCTION MACHINERY CO., LTD.

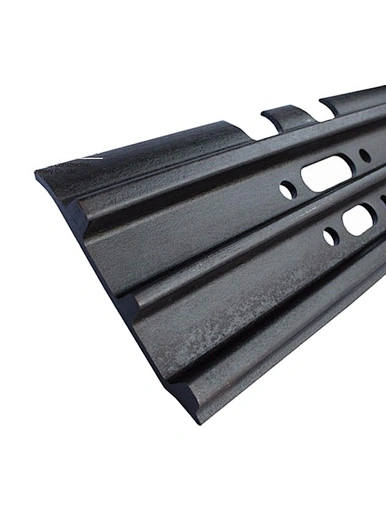

excavator Hitachi Zaxis 200/EX200/EX220 560mm/600mm single track shoe track pad

price

$20.00 - $400.00 / piece

Model NO. Hitachi Zaxis 200/EX200/EX220

Country of Origin XIAMEN

Quantity

Available Model:

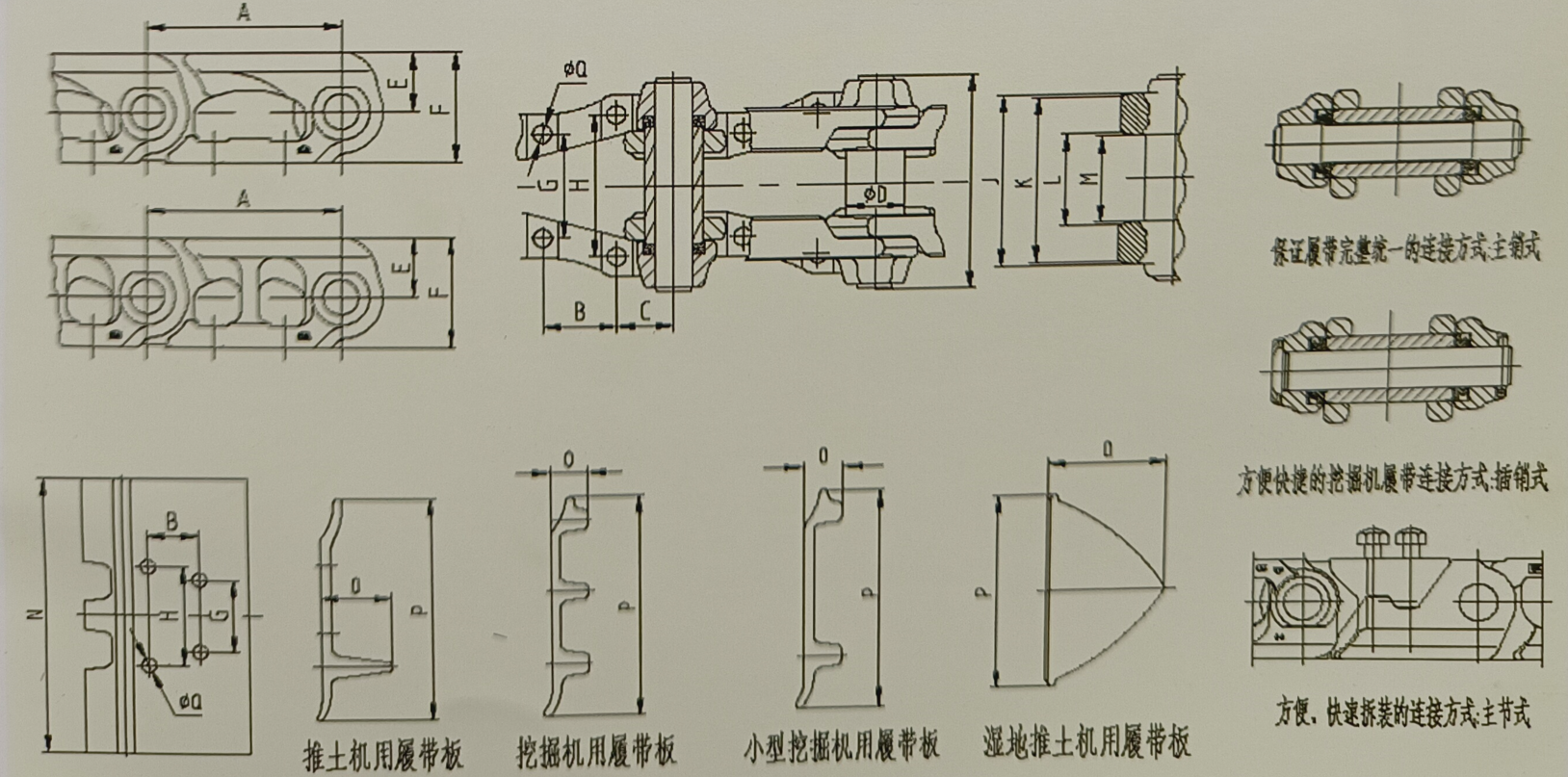

Model	Links kg (machine)	Track Weight kg (machine)	Track Chain Weight kg (machine)	Main installation dimensions of track assemblyandtrackchain																		The structural type	SuitableTonnage/Model
				A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R
8190MO	92	2502	1080	190	62	58	59.4	58	105	124.4	160.4	214	173.6	167.6	88.8	82.8	600	36	217.5	20.2	38	Insert Pin	20T
8190MV	98	2966	1216	190	62	58	59	58	105	124.4	160.4	220	176.04	170.16	87.78	83	600	36	217.5	20.2	38	Master Pin	EC210
8175GA	94		1052	175.41	58.72	57.25	58.72	60.2	103.2	125.4	144.46	212	168.4	162.4	88.86	82.86				18.2	36.3	Master Pin	MS180. EX200-1, D5B
8175GB	96		1046	175.41	58.72	57.25	58.72	60.2	103.2	125.4	144.46	212	168.4	162.4	88.86	82.86				16.2	36.3	Master Pin	MS180、EX2QO1、D5B
8175MA	84	1496	564	175	57	54	48.3	47	88	86.4	102.4	168	122.4	117.5	57.3	52.4	500	33	198.4	16.2	31,75	Master Pin	12T. 10T
8175MG	84	1496	564	175	57	54	48.3	47	88	86.4	102.4	168	122.4	117.5	57.3	52.4	500	33	198.4	16.2	31.75	Master Pin	12T. 10T
8175MH	100	3126	1101	175	57	54	55.65	56.5	101.5	122.4	158.4	218	173	166.7	92.2	84.4	600	33	198.4	18.2	37.8	Master Pin	D50、PC150
8175MI	100	3126	1101	175	57	54	55.65	56.5	101.5	122.4	158.4	218	173	166.7	92.2	84.4	600	33	198.4	16.2	37.8	Master Pin	D50. PC150
8175MJ	98		1090	175	57	54	58.5	56.5	101.5	122.4	158.4	218	173	166.7	92.2	84.4				16.2	37.8	Master Pin	D50, PC150
8175MK	74	1832	822	175	57	54	58.5	56.5	101.5	122.4	158.4	218	173	166.7	92.2	84.4	500	33	198.4	182	37.8	Master Pin	D50. PC150
8171MA	78	1861.5	851-5	171	58.73	55.12	54.15	53.3	101.6	125.4	144.46	209.26	176.3	167.16	86.26	86.26	450	62	199.6	16.2	365	Master Pin	T90、T100
8171MB	78	22553	851.5	171	58.73	55.12	54.15	53.3	101.6	125.4	144.46	209.26	176.3	167.16	86.26	86.26	720	90	162	18.2	36.5	Master Pin	T90. T100
8171GA	88	1884	704	171.45	60.33	55.56	54	52	95.2	107.95	107.95	184	146.5	138.1	74.5	74.5	500	33	198.4	16.2	33.34	Master Pin	YC135
8171GC	80	1480	640	171.45	60.33	55.56	54	52	95.2	107.95	107.95	184	146.5	138.1	74.5	74.5	500	33	198.4	142	33.34	Master Pin	W203、W16
8171GE	82	1680	647	171.45	60.33	55.56	51.25	52	95.2	107.95	107.95	179	146.5	138.1	74.5	74.5	600	33	198.4	162	33.34	Insert Pin	EC150、EX120
8171GF	82	1568	656	171.45	60.33	55.56	54	52	95.2	107.95	107.95	184	146.5	138.1	74.5	74.5	500	33	198.4	16.2	33.34	Insert Pin	YC135
8155GA	84	1086	SO	155.57	57.15	49.2	43	41.3	76.2	88.9	88.9	157	123.5	117.1	59.5	59.5	300	57	170	13	28.7	Master Pin	[700.1800 Paver
8155MB	92	1210	613	15557	54.8	48.5	47	47	84	88.9	104.8	159	127.9	119.3	59.9	59.5	320	57	170	15	28.6	Master Pin	1700.1800 Paver
8154MB	74	924	482	154.1	57.1	44	45.3	47	87	82.4	112.4	162	123.4	117.4	56.6	50.6	450	55.5	182.5	14N	27.8	Master Pin	6T
8154MC	78	844	331	154	57	44	41.3	40	74	73	89	131	105	99.7	50.3	45	450	27	163	142	23.9	Insert Pin	6T
8154ME	78	1678	508.1	154J	57.1	44	47.3	47	87	82.4	112.4	162	123.4	117.4	56.6	50.6	650	82	144	162	27.8	Master Pin	6T
8154MF	78	1094	518	154,1	57.1	44	45.3	47	87	89.8	119.8	169.4	127.2	124.9	63.9	58	450	26	163	142	23.9	Master Pin	6T
8154MG	78	1072	512	154.1	57J	44	47.3	47	87	82.4	112.4	162	123.4	117.4	56.6	50.6	400	55.5	182.5	142	27.8	Master Pin	6T
8140GB	84	1014	348	140	52	44	40.3	40	75	86	86	137	116.4	112	56	56	450	27	163	142	28	Insert Pin	8.5T
8135MD	88	780	350	135	43,4	41	41.3	41	75	72	99	143	106	100.7	51.3	46	450	20.5	154	[22	23.7	Insert Pin	6T
8135GA	80	599	209	135	46	41	35.2	35	65	64	88	123.4	88.6	88.6	40.6	40.6	400	20.5	154	122	22.5	Insert Pin	5.5T
8135GB	80	546	215	炫	46	41	35.2	35	65	74.4	98.4	133.4	99	99	51	51	400	20.5	154	122	22.5	Insert Pin	5.5T
8135GC	78	555	201	135	46	41	35J2	35	65	58.4	82.4	117.4	83	83	35	35	400	20.5	154	122	22.5	Insert Pin	5.5T
8135GD	74	522	188	135	46	41	35,2	35	65	53.4	77.4	112.4	74	74	30	30	400	20.5	154	122	22.5	Insert Pin	5.5T
8135GF	96	711	258	135	46	41	3&2	35	65	69.4	93.4	128.4	94	94	46	46	450	20,5	154	12.2	22.5	Insert Pin	5.5T
8135GK	78	616	229	135	46	40	35.1	36	67	80	104	140	107.6	101.6	57.6	53.6	400	20.5	154	12、2	22.2	Insert Pin	5.5T
8135GV	78	642	293	135	43.4	424	39	36	70	72	99	140	107.4	101.4	50.6	47.4	380	20,5	154	13.2	22.3	Insert Pin	EC55
8125GA	86	417	178	125	53	36	32	35	63	80	80	128	104.1	101.2	57.2	57.2	250	455	140	10.2	21.7	Master Pin	EX30
8101GH	100	508	184	101.6	23.5	36.55	33.26	40	70	55,6	65,5	07	76	76	35	35	350	23.5	109	12.2	21	Insert Pin	3.5T
