$2.00 - $10.00 / piece
- Showroom Location:None
- Place of Origin:Fujian, China
- Brand Name:FDM
- Warranty:Unavailable
- Applicable Industries:Machinery Repair Shops, Construction works
- Suitable Excavator(ton):15
- Bucket capacity:0.8m³
- Bucket type:Bucket teeth
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- CERTIFICATION:ISO9001-2000
- Material:40Cr,42CrMo
- Main customer:ITM
- Type:pins and bushings
- Color:silver
- After Warranty Service:Online support
- Local Service Location:None
- After-sales Service Provided:Online support

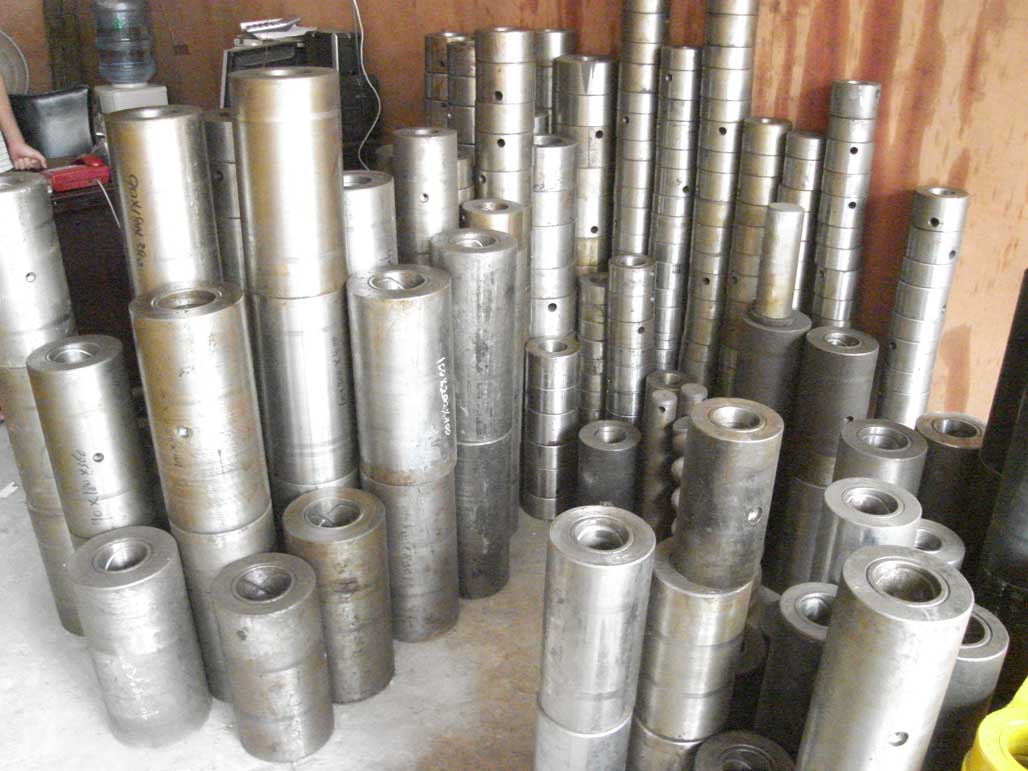

Excavator bucket pins and bushings
1.Products imformation

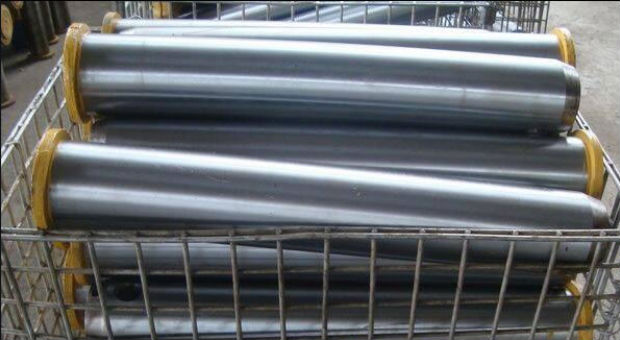

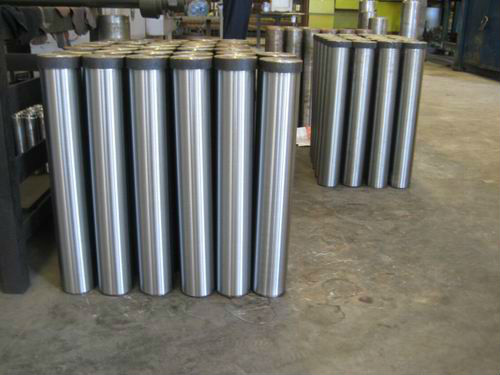

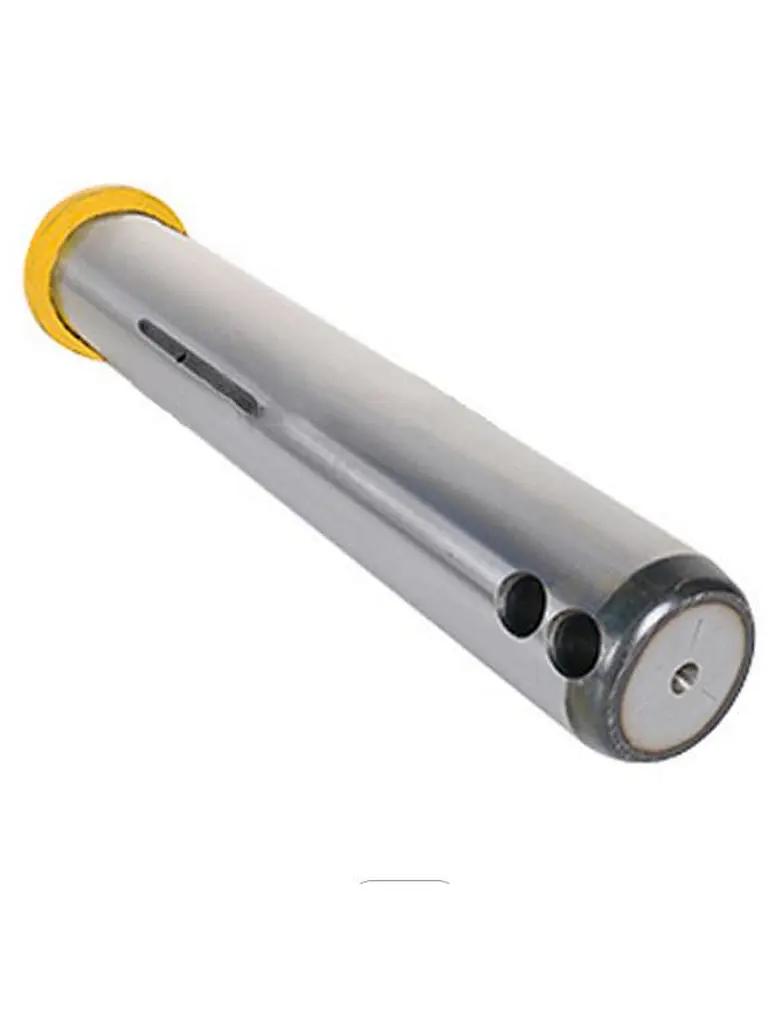

The bucket pin has the functions of positioning and load bearing. The pin diameter, material and surface
hardness are directly related to its load-bearing capacity.
Material:the bucket pin is made of medium carbon alloy steel such as 40Cr, 42CrMo, etc.
Surface hardness: 48~60HRC
Heat treatment: hardening and tempering, external surface with high or medium
frequency quenching
Surface treatment: hard chrome plating, with hardness exceeding HV700; sprayainting
Warrenty:2000 hours
Some Size Pins and Bushings for Ref.:
Bushing | 24.5*41.2*85 | Bushing | 37*54*139 |
Pin | 24.2*138 | Pin | 36.5*208 |
Bushing | 24.5*41.2*85 | Bushing | 30.7*46.2*102 |
Pin | 24.2*131 | Pin | 30.2*162 |
Bushing | 30.7*46.2*102 | Bushing | 33.8*50.8*119 |
Pin | 30.2*168 | Pin | 33.5*182 |
Bushing | 30.6*46*100 | Bushing | 36.9*58.8*142 |
Pin | 30.2*168 | Pin | 36.5*214 |
Bushing | 30.7*46.2*102 | Bushing | 38.8*59.3*146 |
Pin | 30.2*168 | Pin | 38.2*219 |
Bushing | 38.8*59.3*146 | Bushing | 45.3*66.7*168 |
Pin | 38.2*219 | Pin | 44.6*239 |
Bushing | 66.7*45.3*168 | Bushing | 48.15*71.65*175 |
Pin | 44.6*239 | Pin | 47.43*254 |
Bushing | 45.3*66.7*168 | Bushing | 33.8*53.2*121 |
Pin | 44.6*239 | Pin | 33.5*182 |
Bushing | 71.65*48.15*175 | Bushing | 30.6*47.3*104 |
Pin | 47.43*254 | Pin | 30.2*168 |
Bushing | 22.5*39.3*80 | Bushing | 33.8*50.8*119 |
Pin | 22.3*139 | Pin | 33.5*182 |
Bushing | 38.7*55.3*141 | Bushing | 36.9*58.8*142 |
Pin | 38.2*219 | Pin | 36.5*214 |
Bushing | 45.3*66.7*168 | Bushing | 43*64.25*160 |
Pin | 44.6*239 | Pin | 42.25*232 |
Bushing | 22.6*35*80 | Bushing | 46.7*67.95*170 |
Pin | 22.3*143 | Pin | 45.95*250 |
