• Showroom Location:None
• Place of Origin:Fujian, China
• Brand Name:excavator bucket side link
• Model Number:excavator bucket side link
• Warranty:1 Year
• Applicable Industries:Machinery Repair Shops
• Suitable Excavator(ton):Other
• Bucket capacity:Other
• Bucket type:Other
• Machinery Test Report:Provided
• Video outgoing-inspection:Provided
• Marketing Type:Other
• material:Q345/Q460/NM360/NM400/WH60)/Hardox400,500 excavator bucket side link
• color:yellow or as your requirement excavator bucket side link
• certification:ISO9001 excavator bucket side link
• After Warranty Service:Online support
• Local Service Location:None
• After-sales Service Provided:Online support

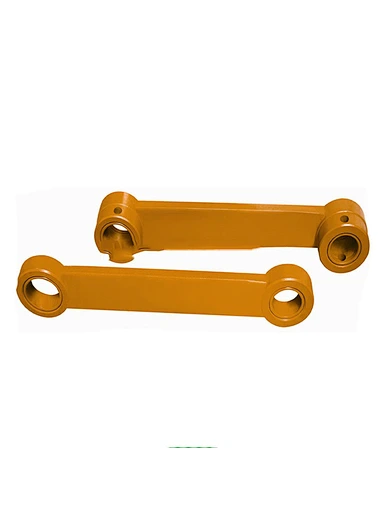

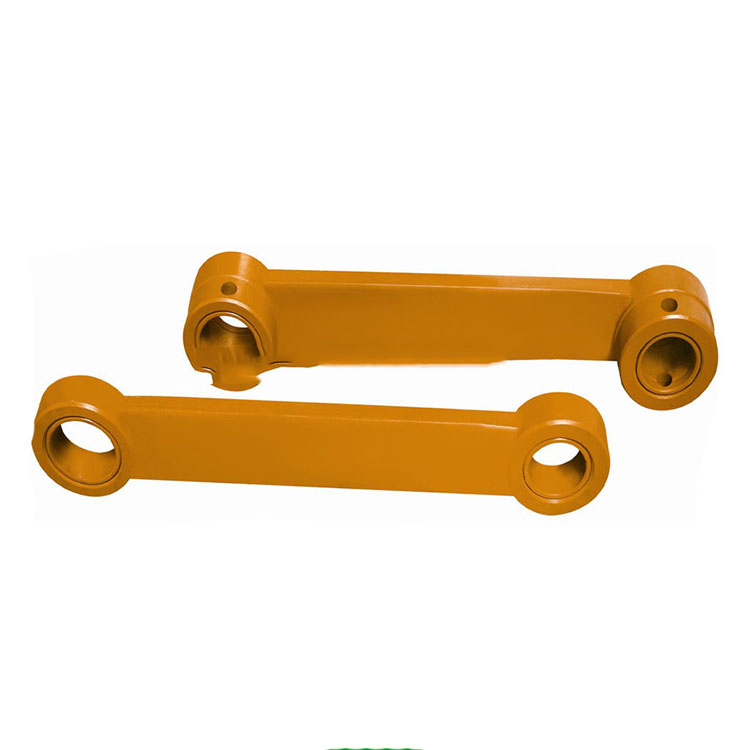

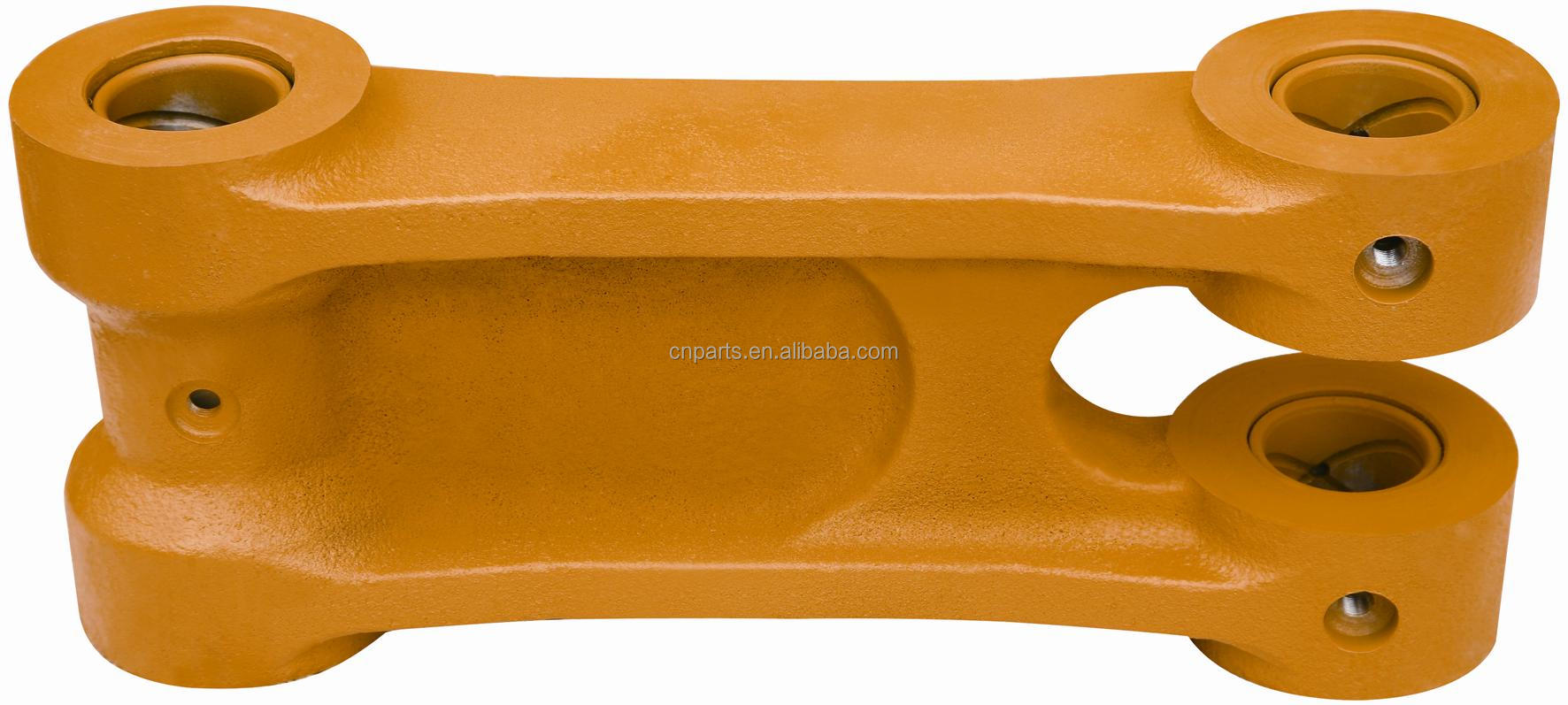

Excavator Bucket linkage link rod side links bucket connecting rods

The bucket link is made of Q345B, with surface hardness of 55HRC~58HRC. The link rod provides yield strength of 800MPa,

impact flexibility of 800kJ/m2 and center hardness of 22HRC~25HRC. High strength CO2 gas shielded welding is used to

ensure the strength of the link mechanism. The internal liner is made of spheroidal graphite cast iron, guaranteeing self-lubricating function when the bucket link is working

Since tipping links are not bushed, the bores will eventallly wear out and need replacing.Damage to both bucket links andtipping linkscan result from bucket pins coming adrift during digging, or from fouling on items such as lifting chains. Damaged links should be replaced immediately to avoid further damage to the bucket, dipper arm, and bucket ram.

For your convenience we stock the tipping links in pairs, and the bucket links without bushes, giving you the option of re-using bushes where they are still in good condition.

For Excavator:

1.komatsu, hitachi, kobelco, kato, sumitomo, daewoo, hyundai, samsung, volvo and so on.

2. Material:Q345(16MN),Q460,WH60A,WH60C,NM360,NM400 ect.

Applicable Models

1. Komatsu: PC40, PC60-5-6-7, PC100, PC120, PC130, PC240, PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC400-1-3-5

2. Hitachi: EX40, EX60, EX150, EX100M, EX100, EX120, EX150, EX200-1-2-3, EX300-1-3-5, EX400, UH08, UH07

3. Ca: E110B, E200B (E320), E240 (MS180), E300B, E330

4. Daewoo: DH220, DH280, R200, R210.

5. Kato: HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850,

DH880, HD1020, HD1220 (HD1250), HD1430, DH1880

6. Kobelco: SK07N2, SK07-7SK200, SK220, SK300, SK320

7. Sumitomo: SH120, SH200, SH280, SH300, SH400

8. Mitsubishi: MS110, MS120, MS180

9. Samsung: SE55, SE210

1) We professionally specialize in link assy, pin, bushing, high-strength bolt &nut and machine spare parts for various models of excavators and bulldozers and so on.

2) High quality products with reasonable price and good service for customers,

the goods have been done the Physics and the Chemistry Detecting

3) Custom designs are allowed(We can produce goods according to our customer's supplied samples, designs or technical drawings).

4)FOB price as latestprice
