$2500.00 - $3750.00 / piece
- Condition:New
- Applicable Industries:Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2020
- Place of Origin:Fujian, China, Fujian China (Mainland) 200T track pin press
- Brand Name:Doozer, FDM 200T track pin press
- Warranty:6months
- Surface Hardness:HRC48-60HRC 200T track pin press
- Main customer:200T track pin press
- Material:40Cr 42CrMo 200T track pin press
- Certification:ISO9001:2000 200T track pin press
- Heat tratment:Thermal refining, Surface medium frequency
- Port:Xiamen 200T track pin press
- After Warranty Service:No service, Online support, Spare parts
- Local Service Location:None
- After-sales Service Provided:Video technical support, Online support, Free spare parts

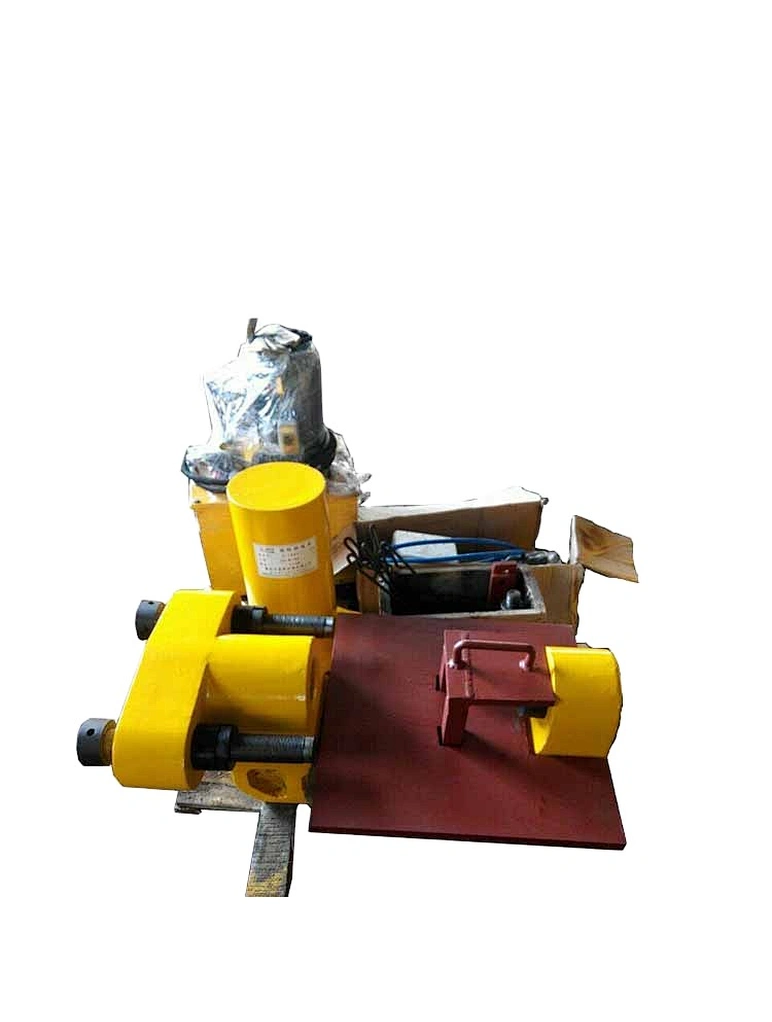

200T Portable Track Pin Press Master Pin Press for Track Chains Links
Specifications
Portable press powerful and versatile tools for assembly and disassembly of track chains. Easy move.
portable presses, powerful and versatile tools for assembly and disassembly pins and bushings of track chains. Specially indicated to be used in the field and equipped with manual or electrical pump.
Hydraulic portable track press
The main indicator of high technology is the use of the world's most advanced hydraulic pressure technology. It has two Chinese patent number ZL9224949.5 and ZL9522833.8 in 1998. This small machine can be easy moved to anywhere and easy to prepare excavator or bulldozer machine track link in the field. It can remove broken link section , Fix good link section within few minis.
Complete equipment for removal and installation of track pins , master pins, bushings and master bushings .

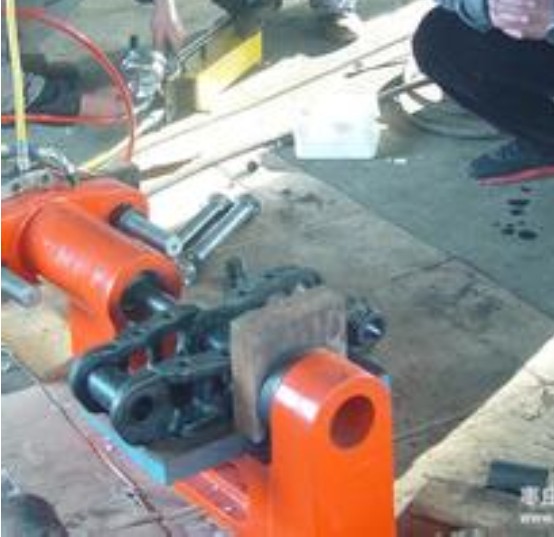

Safe and fast removal and installation of pin and bushings in any working conditions, even with grousers in place .
It can be used up to 50ton ram thrust . Approx.mass 70Kgs.(155lb)
There are more imformation about Manual press link machine as follow for your reference:
No | Type | Machine type | Fit for pitch (mm) | Mould | unit price USD FOB Chinese port | Fit machine | Efficiency |
qty | |||||||
1 | Manual press link machine weight about 250Kgs | 150-1 | 175,190 | 1 | 2500 | PC100,PC200 | about 15-20 mins |
150-2 | 175,190,203 | 2 | 2600 | PC100,PC200, | |||
PC300 | per link section | ||||||
150-3 | 175,190,203,216 | 3 | 2800 | PC100,PC200, | |||
PC300,PC400 | |||||||
200 | 175,190,203,216,228 | 4 | 3100 | PC100,PC200, | |||
PC300,PC400-6 | |||||||
200-1 | Only for 280 | 1 | 3650 | PC600,D9,D10 | |||
2 | Manual & Electronic press link machine, weight about 300Kgs | 150-1E | 175,190 | 1 | 3340 | PC100,PC200, | about 7-10mins |
150-2E | 175,190,203 | 2 | 3440 | PC300 | |||
150-3E | 175,190,203,216 | 3 | 3640 | PC100,PC200, | |||
200E | 175,190,203,216,228 | 4 | 3940 | PC100,PC200, PC300,PC400-6 | per link section | ||
200-1E | Only 280 | 1 | 4490 | PC600,D9,D10 |
The double-acting cylinders equipping the presses have been built according to the latest techniques .
The remarkable length of stroke makes it possible to carry through assembiling and disassembling of track chaines without any work stoppage . provisions on cylinder head and piston rod end allow fitting tooling for the different servicing operations .
The two quick half couplers ,cylinder side, are supplied only upon request.
Notes:
1.Life Guarantee: 6 momth .
2. Price valid time: 30 days.
3.Delivery date: with 30days.
4. In order to increase efficiency, we sugeest you order type E .
